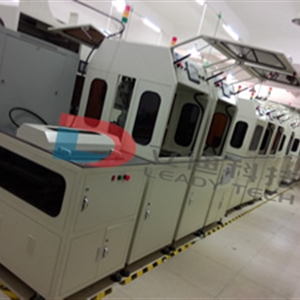

The assembly line is major for plastic cups, power board, heat cup, led plate, lamp lens. Including red punching, glue dispensing, thermal grease, screw locking, soldering, tunnel oven drying, high voltage test (bad products removed), FCT test, test, assembled bulb etc. work station. The device also has the advantages of high voltage test, FCT test data upload computer storage, production quantity counting, production data analysis. The whole line is controlled by industrial computer, through the TCP protocol, local area network for each site data collection and control
Apply for large power LED lamp(such as :MR16.gu10)assembly
LED Lamp Assembly
?
Specifications:
Outline Size : (L*W*H) 700*900*2000mm
Working range : (X*Y*Z) 250*250*100mm
Diver Type : 4axis servo motor
Coordinate Precision XYZ : ±0.02mm
Positioning R Axis : ±0.05°
Slide Guide : import side/screw rod
Control : PC control sys
Program : 256 groups,400dot /groups????????????????
Voltage : 220VAC、50HZ（tunnel oven 380VAC
Power : 20KW--50KW (according to modules quantity
Air Pressure : 0.6Mpa
Remark : line length according to customized module quantity
